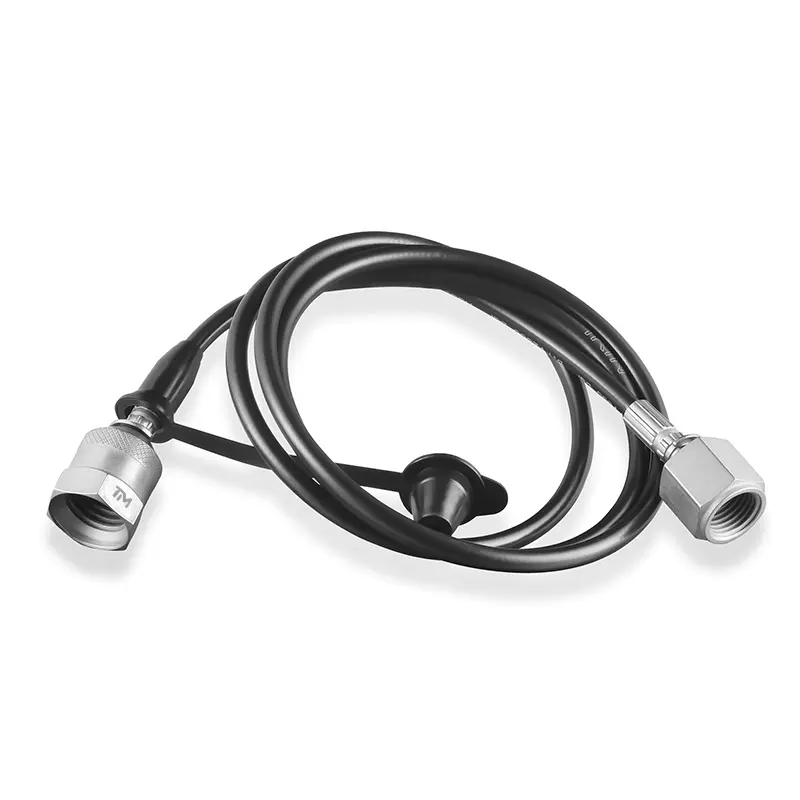

China TM Hydraulic Test Hose for hydraulic system Manufacturer, Factories
Product Description
Applications
● Construction equipment from leading brands like SANY, XCMG, Terex, and Palfinger
● Wind power generation units, such as those from Suzlon Energy
● Agricultural machinery including solutions from Weichai Power and Lingong Construction
● Automated manufacturing systems by Bosch Rexroth and others
● Energy and power infrastructure projects with companies like GE and Shanghai Electric
● Metallurgy plants and mining facilities
● Railway transit systems including CRRC Corporation applications
● Processing and injection molding equipment (e.g., Haitian, KraussMaffei)
Technical Specifications
| Applications: | Applied for pressure monitoring & controlling. |
| Seal Material: |
NBR (Temperature range -20℃ to +100℃) FKM (Temperature range -20℃ to +200℃) EPDM (Temperature range -40℃ to +150℃) Low temperature: -50℃ on request |
| Raw Material: | DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel. |
| Max Working Pressure: | 63 Mpa |
| Surface treatment: | Zinc, Zinc Nickel (CrⅥ-free) |
| Working Fluid: | Suitable for hydraulic oils and other Mineral oil based fluids. For gas or other fluid medium, please confirm requirements before ordering. |
| Certificates: | SGS, ISO |
| Sample Delivery: | Sample in 3 days, logo customized service available. |
Certifications & Quality Assurance
⭐ ISO approved
⭐ SGS approved
⭐ Fatigue Testing passed
⭐ 3 years guarantee
⭐ Awarded "Advanced Enterprise"
Our Advantages
✅ Factory based in China, dedicated to pressure testing products
✅ Zero-leakage performance with patented cone seal
✅ High-quality products at competitive factory prices
✅ Proven quality trusted by industry giants (SANY, Parker, HAWE)
✅ Fully compatible with brands like Stauff, Minipress, and MCS
FAQ
What is the maximum pressure these hoses can handle?
Our hydraulic test hoses are designed to handle a maximum working pressure of up to 63 Mpa.
What seal materials are available for different temperatures?
We offer NBR (-20℃ to +100℃), FKM (-20℃ to +200℃), and EPDM (-40℃ to +150℃). Low-temperature options down to -50℃ are available upon request.
What raw materials are used in construction?
We use high-grade DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel to ensure durability and corrosion resistance.
How long does it take to receive a sample?
Standard samples can be delivered within 3 days. We also offer logo customization services.
Are your products compatible with other global brands?
Yes, our products are engineered to be fully compatible with popular global brands such as Stauff, Minipress, and MCS.
What quality certifications do you hold?
All products are SGS and ISO approved, having passed rigorous fatigue testing, and come with a 3-year guarantee.
