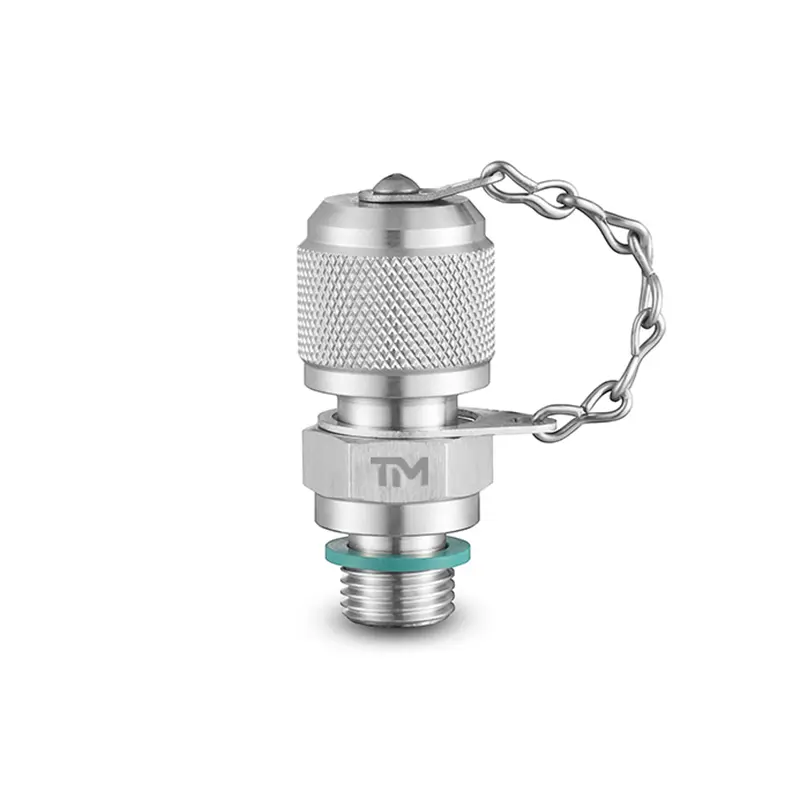

China TM Hydraulic Stainless Steel Hydraulic Test Point 316L/304 for hydraulic system Manufacturers, Suppliers
Product Description
Applications
🚀 (1) Construction equipment from leading brands like SANY, XCMG, Terex, and Palfinger
🚀 (2) Wind power generation units, such as those from Suzlon Energy
🚀 (3) Agricultural machinery including solutions from Weichai Power and Lingong Construction
🚀 (4) Automated manufacturing systems by Bosch Rexroth and others
🚀 (5) Energy and power infrastructure projects with companies like GE and Shanghai Electric
🚀 (6) Metallurgy plants and mining facilities
🚀 (7) Railway transit systems including CRRC Corporation applications
🚀 (8) Processing and injection molding equipment (e.g., Haitian, KraussMaffei)
Technical Specifications
| Applications: | Applied for pressure monitoring & controlling. |
| Seal Material: | NBR (-20℃ to +100℃) FKM (-20℃ to +200℃) EPDM (-40℃ to +150℃) Low temperature : -50℃ on request |
| Raw Material: | DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel. |
| Max Working Pressure: | 63 Mpa |
| Surface treatment: | Zinc, Zinc Nickel (CrⅥ-free) |
| Working Fluid: | Suitable for hydraulic oils and other Mineral oil based fluids. For gas or other media, please confirm before ordering. |
| Certificates: | SGS, ISO |
| Sample Delivery & Service: | Sample in 3 days, logo customized. |
Protection Cap
Certifications & Quality Assurance
✅ ISO approved
✅ SGS approved
✅ Fatigue Testing passed
✅ 3 years guarantee
✅ Repeatedly awarded “Advanced enterprises of Province"
Our Advantage
⭐ Factory based in China, dedicated to pressure testing products
⭐ Zero-leakage performance with patented cone seal
⭐ High-quality products at factory prices
⭐ Proven quality trusted by industry giants
⭐ Working with clients such as SANY, Parker, HAWE
⭐ Compatible with popular global brands (Stauff, Minipress, MCS)
Frequently Asked Questions
What is the maximum working pressure for your products?
Our products are designed to handle a maximum working pressure of up to 63 Mpa, ensuring safety and reliability in high-pressure environments.
Which seal materials are available for different temperature ranges?
We offer NBR (-20℃ to +100℃), FKM (-20℃ to +200℃), and EPDM (-40℃ to +150℃). Special low-temperature seals down to -50℃ are available upon request.
What raw materials are used in manufacturing?
We use high-grade DIN 1.0718 carbon steel, as well as 304 and 316L stainless steel to ensure durability and corrosion resistance.
Are your products compatible with other global brands?
Yes, our products are fully compatible with popular global brands such as Stauff, Minipress, and MCS, making them ideal for replacement or integration.
Do you provide quality certifications?
Absolutely. Our products are ISO and SGS approved, have passed rigorous fatigue testing, and come with a 3-year guarantee.
How fast can I receive a sample?
Standard samples can be delivered within 3 days. We also offer logo customization services for our clients.
