Wholesale TM hydraulic pressure test coupling with cutting ring for hydraulic system Manufacturers, Supplier

With its cutting ring connection, pressure test point is ideal for accurate pressure checks and fluid extraction. The secure threaded design prevents leakage even in extreme conditions.

Key Features
✓ Drop-in replacement for Minimess and similar brands
✓ Withstands up to 630 bar working pressure
✓ Cone seal structure prevents leakage
✓ tube connection
✓ Dust cap included as standard
✓ Quality assured by full inspection
✓ Customization with company logo possible
✓ Material origin tracking system
✓ 3 years of functional assurance

Product Description

Industrial Applications

Construction machinery (SANY, XCMG, Terex, Palfinger)
Wind power generation units (Suzlon Energy)
Agricultural and farming equipment (Weichai, Lingong)
Industrial control and automation (Bosch Rexroth)
Power generation and energy distribution (GE, Shanghai Electric)
Mining and metallurgical processing
Railway vehicle systems (CRRC Corporation)
High-performance machinery in plastics (Haitian, KraussMaffei)

Technical Specifications

Applications Applied for pressure monitoring & controlling.
Seal Material NBR (-20℃ to +100℃)
FKM (-20℃ to +200℃)
EPDM (-40℃ to +150℃)
Low temperature: -50℃ on request
Raw Material DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel.
Max Working Pressure 63 Mpa
Surface Treatment Zinc, Zinc Nickel (CrⅥ-free)
Working Fluid Suitable for hydraulic oils and other Mineral oil based fluids. For gas or other media, please confirm before ordering.
Certificates SGS, ISO

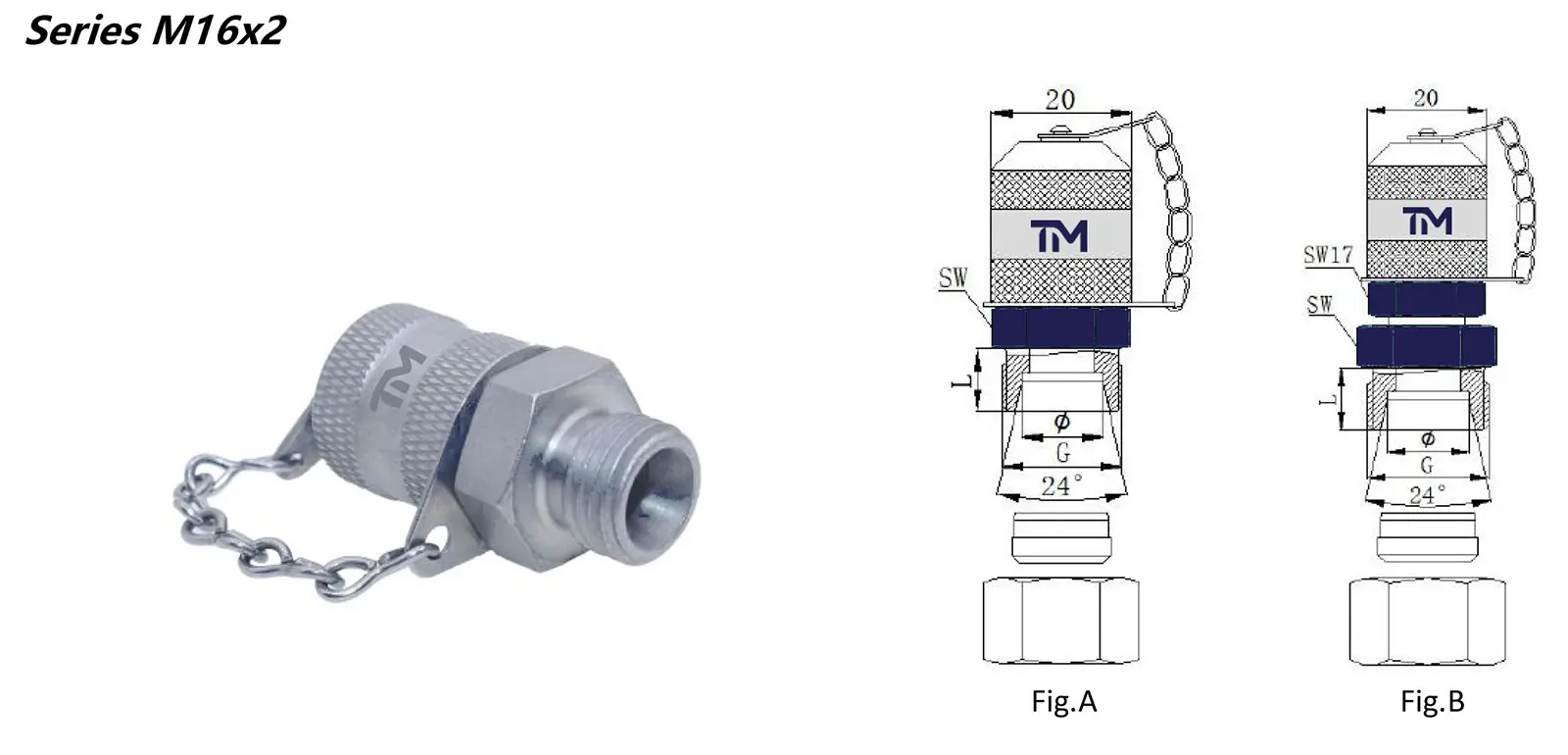

Pressure test coupling

Pressure test coupling with cutting ring

Protection Cap

Protection Cap

Quality Assurance & Advantages

ISO & SGS approved
Fatigue Testing passed
3 years guarantee
Cone-seal technology for zero leakage
100% focused on hydraulic test fittings
Excellent price-to-performance ratio
Approved by SANY, Parker, and XCMG
Direct replacement for MCS and Minimess

Frequently Asked Questions

Q1: What materials are available for the test couplings?
We offer DIN 1.0718 carbon steel, 304 stainless steel, and 316L stainless steel to meet different environmental requirements.
Q2: What is the maximum working pressure these fittings can handle?
Our high-performance couplings are designed to withstand a maximum working pressure of up to 63 Mpa.
Q3: Are there different seal options for extreme temperatures?
Yes, we provide NBR (up to 100℃), FKM (up to 200℃), and EPDM (up to 150℃). Special low-temperature seals (-50℃) are available upon request.
Q4: Can these products replace other major brands?
Yes, our hydraulic test fittings are designed as direct replacements for well-known brands such as MCS and Minimess.
Q5: What is the lead time for samples?
Standard samples can typically be delivered within 3 days, and we offer logo customization services.
Q6: What quality certifications do your products hold?
Our manufacturing processes and products are ISO and SGS approved, having passed rigorous fatigue testing.
